This week's assignment was designed to focus on being able to compose a series of different raster bands into a composite image utilizing both ERDAS Imagine and ArcMap. A couple different images were provided by UWF to exercise these skills and to ultimately come up with a user derived analysis of some particular feature.

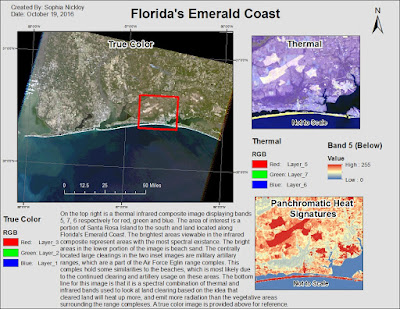

The map shown below is a thermal overview of Florida's Emerald Coast. The image, provided by UWF, dates back to February of 2011. The main map is a True Color image displaying an overview of where the two inset maps are located. The central feature of the two inset images is a large oblong clearing. A clearing is one of many available military firing ranges located along the panhandle. The main objective of this assignment was to try and differentiate the area of interest from it's surroundings using thermal imagery. The purple image, located in the top right, comes from a unique combination of infrared both short wave and thermal bands to provide brightness to the "hottest" areas. These are areas that heat up and/or emit the best. You can see that there is a very similar spectral pattern all along the island to the south. Santa Rosa Island is made up of white sand beaches and dunes and appears as the only feature that might be spectrally similar to the artillery ranges. The color inset, located on the bottom right, is another infrared look at the area, but rather a grayscale color has been used to help give characteristic spectral pattern to the other images.
Wednesday, October 19, 2016
Monday, October 17, 2016
GIS 4930: Special Topics; Project 3: Stats Prepare
Throughout the next few weeks, we will be delving deep into the clandestine, the dangerous and ultimately bad world of drugs. Specifically we will be examining the role of GIS statistical analysis as it applies to aiding law enforcement with determining ideal locations to find methamphetamine labs. Meth has been around since the early 1920's and have been illegal since the 60's, which drove the illicit trade underground. Meth labs have been found in every state, but surprisingly only in about half of the country's counties. Over the next few weeks, we will be analyzing two different counties of West Virginia, Putnam and Kanawha. These counties are credited with 187 meth lab busts from 2004-2008. Chances are, we all know someone who has been impacted through drugs, or drug use, or at minimum you can see it all too prevalent on the news. The idea behind this lab is to examine the socioeconomic trend information that can aid in determining where meth labs are most likely and be able to give that information to local law enforcement agencies. The end deliverable for this year will be a scientific paper discussing the issue and analysis being done on the study area shown below.
As stated earlier, the study area is of the Charleston vicinity in West Virginia and is home to 187 meth lab busts. This information has already been summarily broken down into a meth lab density by census tract shown in the main map provided below. This essentially means the total number of busts per census tract was divided by the area of the tract to provide us with density values seen in the legend. This map also provides a basic overview of the subject counties and provides state context as well.
As stated earlier, the study area is of the Charleston vicinity in West Virginia and is home to 187 meth lab busts. This information has already been summarily broken down into a meth lab density by census tract shown in the main map provided below. This essentially means the total number of busts per census tract was divided by the area of the tract to provide us with density values seen in the legend. This map also provides a basic overview of the subject counties and provides state context as well.
Sunday, October 16, 2016
GIS 4035: Remote Sensing; Week 7: Multispectral Analysis
This week's focus revolved around multispectral analysis through spectral enhancement. Essentially this means to take existing spectral data and present it in a manner that might bring out certain relationships or patterns not readily present in other presentations. The main objective for this assignment was to study an image set and identify certain spectral relationships that aren't readily seen looking at a standard true color image. This is accomplished by manipulating the pixel values to show other relationships through gray scale panchromatic views of single spectral bands or different combinations of multiple bands such as that seen from a standard false color infrared image. Both ERDAS Imagine and ArcMap were used to explore the image provided. Several tools within ERDAS were used, such as the Inquire Cursor to look at particular groups of pixels for their relevant brightness information. Histograms and contrast information were utilized to identify patterns within multispectral and panchromatic views of one or more spectral bands. The image shown in all three maps below was provided by UWF. This week's assignment required us to identify three different sets of unique spectral characteristics present within the image and to build maps displaying our results. These results are shown below.
The first criteria involved locating the feature in spectral band 4 that correlates to a histogram spike in value between 12 and 18. Band 4 is generally associated with near infrared (NIR) energy and is good for looking at vegetation and soil and crop land and water contrasting. With this task, I needed to look at the histogram and find the resulting spike, which is shown in the lower right of the image displayed below. From there, I specifically made this the only “visible” feature in the map. Both images shown on the left are using band 4, which proves that the water does stand out quite significantly.
The second criteria involved locating a feature that represents both a spike in the visual and NIR bands with a value around 200, and a large spike in the infrared layers of bands 5 and 6 around pixel values 9 to 11. The main features of this image are displayed in a false natural color employing bands 5, 4, 3. This combination of colors does particularly well at letting the areas that are being inquired about be displayed. I’ve also created insets to display the different extents of the same data in different spectral scenes. The two separate breakdowns of pixels of value 200 in visual bands and values 9-11 in the infrared bands are compared on the lower right.
The second criteria involved locating a feature that represents both a spike in the visual and NIR bands with a value around 200, and a large spike in the infrared layers of bands 5 and 6 around pixel values 9 to 11. The main features of this image are displayed in a false natural color employing bands 5, 4, 3. This combination of colors does particularly well at letting the areas that are being inquired about be displayed. I’ve also created insets to display the different extents of the same data in different spectral scenes. The two separate breakdowns of pixels of value 200 in visual bands and values 9-11 in the infrared bands are compared on the lower right.
The third, and final, criteria revolves around water features in
which viewing bands 1-3 become brighter than usual, but remain relatively
constant in bands 5 and 6. A true, or natural color, image is shown on the upper right. Looking at this image, you can see a river in the upper right portion that is much darker than the water ways featured in the other images. The image shown adjacent to the natural color photo is a custom combination of bands 6, 3, 2 to focus
the brightening of the inlet/bay feature while not pronouncing the IR energy in
the same ways as the typical false color IR, which is shown in the lower right corner. Extent indicators were used to show
the different looks at the specified band and pixel value combinations
identified. A gray scale image was
created to reflect band 3 which shows the largest brightening values.
This assignment wasn't easy, since it involves many concepts I'm still trying to understand. However, I feel as though I've learned some new things throughout this week's assignment. I'm looking forward to learning more throughout the remainder of the semester.
Friday, October 14, 2016
GIS 4930: Special Topics - Module 2: MTR Report
Honestly, I absolutely hated this MTR assignment. Throughout these past couple of weeks, we were supposed to be working as a group to complete the final project. Even though I signed up for a group, I felt like I wasn't a part of one. I would ask the group leader questions but would not receive a response in a timely manner. Basically, I felt like I was "out of the loop" throughout the entire assignment. If I had any extra time to work on this assignment, I would most definitely start from the beginning. I'm really disappointed with the decisions I made in regards to Non-MTR and MTR during the Analyze week a few weeks back.
Wednesday, October 12, 2016
GIS 4035: Module 6 - Spatial Enchancement
This week's lab assignment was centered on working within ERDAS Imagine and utilizing the Fourier Analysis tools, the Convolution tool, and the Focal Statistics tool (found in ArcMap). The project required us to work with a Landsat image that has bands running horizontally across. The tools named above were required in order to minimize the banding to the greatest extent possible without losing too much detail in the image. The assignment was built for us to experiment with the different tools in ERDAS, as well as learn how to use them in getting better results.
In performing this exercise, I used all types of combinations using the tools previously listed in an attempt to remove the strips in the image. The image shown below is the result of using the Fourier Transformation Editor tool and the Convolution of a 3x3 Low Pass kernel. I made sure to finish by adjusting the histogram of the image for better visualization. My results aren't 100% perfect, since the bands are still visible from the left side of the imagery. However, the right side looks pretty good. If I had more time, I would definitely experiment with the different tools in an attempt to get the final result to balance out. Overall, I enjoyed this assignment. It was definitely challenging, but I feel as if I've learned some new things along the way.
In performing this exercise, I used all types of combinations using the tools previously listed in an attempt to remove the strips in the image. The image shown below is the result of using the Fourier Transformation Editor tool and the Convolution of a 3x3 Low Pass kernel. I made sure to finish by adjusting the histogram of the image for better visualization. My results aren't 100% perfect, since the bands are still visible from the left side of the imagery. However, the right side looks pretty good. If I had more time, I would definitely experiment with the different tools in an attempt to get the final result to balance out. Overall, I enjoyed this assignment. It was definitely challenging, but I feel as if I've learned some new things along the way.
